PT Smart Modular Bangun Indonesia
Sandwich & Insulated Roof

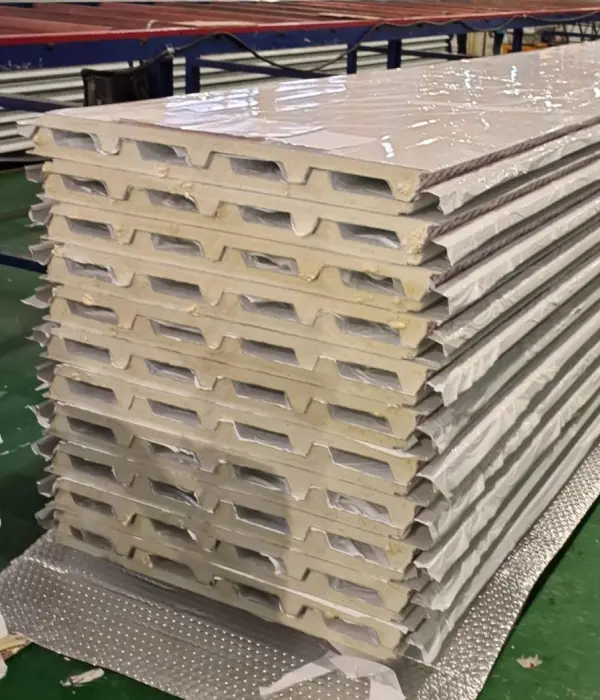

SMARTROOF is a PIR insulated zincalume roof panel that is energy-efficient, lightweight, moisture-resistant, and eco-friendly for modern buildings.
- Jl. Raya Cikande Rangkas Bitung KM 9 KAV 6AB CBA Jawilan Serang - Banten
Roof Exterior Doesn't Have to Be Expensive or Complicated! It Should Be Smart & User Friendly
Experienced in the Field
Roof Exterior Company Based in Banten – Indonesia
SMARTROOF is Polyisocyanurate (PIR) pre-insulated panel laminated with zincalume. Polyisocyanurate (PIR) is known for its excellent behavior as an insulation material with low thermal conductivity, it can be used in cool and hot temperature zones.
SMARTROOF improves your building’s thermal performance and also a lightweight modular building material, which forms the entire building’s roof thermal insulation, vapor barrier and weatherproofing. SMARTROOF has been specially developed for use in residential, commercial and industrial building.
SMARTROOF offers energy saving and low running costs. It is durable due to its moisture resistant and solid cell structure, and uses high quality insulation materials to ensure it is environmentally friendly, Zero Ozone Depletion Potential (Zero ODP) and Low Global Warming Potential (Low GWP).
Certified
Certified Product :
Certified products that have passed official quality testing processes, ensuring safety, reliability, and optimal performance.
Manufactured under strict quality control and compliant with applicable regulations, providing confidence and maximum satisfaction for every user.
Every Space Count
Why Choose Us
Speed up the installation process
Thermal performance and lightweight
Energy saving and low running costs
Environmentally friendly zero ODP & low GWP
ADVANTAGES
The Unique Advantages of Our Product
• Excellent insulation material, with low thermal conductivity PIR core
• Fire safety
• Easy to install
• Energy saving and efficient
• Lightweight
• Outstanding load bearing capacity, high impact resistance
• Long life and durable
• Resistant to most oil, chemical and solvent
• Prevent leakage
Specification
Products Specification

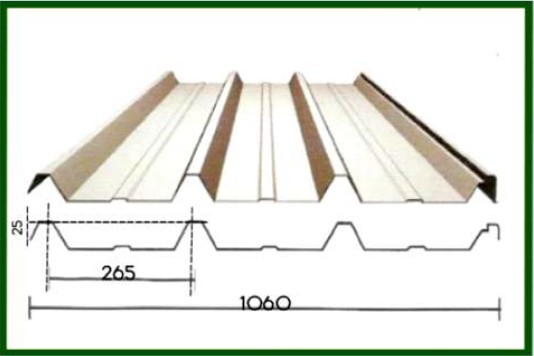

Products Specification Smart Roof
| Thickness : | 0.35 mm, 0.4 mm (TCT) 0.45 mm, 0.5 mm (TCT) or custom |
|---|---|
| Width : | 1060 mm |
| Length : | Max 12 m or custom |
*For illustration only

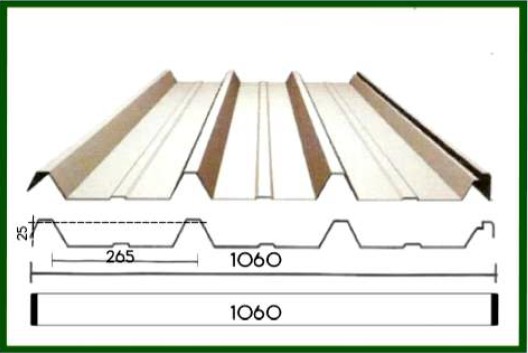

Products Specification Smart Roof Pir Metal
| Description : | Metal – Metal : |
|---|---|
| Top Metal Thickness (mm) | 0.3, 0.4, 0.45, 0.5 (TCT) or custom |
| Bottom Metal Thickness (mm) | 0.3, 0.4, 0.45, 0.5 (TCT) or custom |
| Width (mm)* | 20 |
| Length (m) | 1060 |
| Insulated Core | Max 12 m or Custom |
| R – Value (m²K/W) | PIR |
| U – Value (W/m²K) | 0.99 |
| Compressive Strength (Kpa) | 350 |

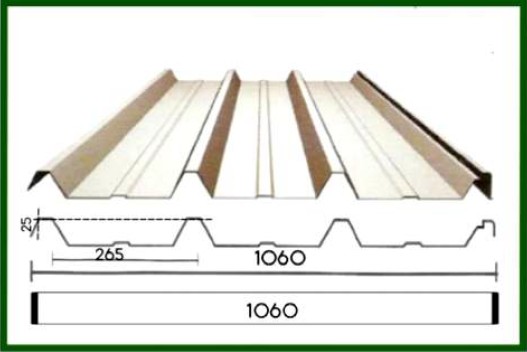

Products Specification Smart Roof Pir Alumunium
| Description : | Metal – Metal : |
|---|---|
| Top Metal Thickness (mm) | O.3, O.4, 0.45, 0.5 (TCT) or Custom |
| Bottom Material (mm) | Aluminium Foil |
| Thickness (mm) | 10 | 20 |
| Width (mm)* | 1060 |
| Length (m) | Max 12m or Custom |
| Insulated Core | PIR |
| R – Value (m²K/W) | 0.52 | 1.02 |
| U – Value (W/m²K) | 1.90 | 0.97 |
| Compressive Strength (Kpa) | 350 |
Products
Our Products

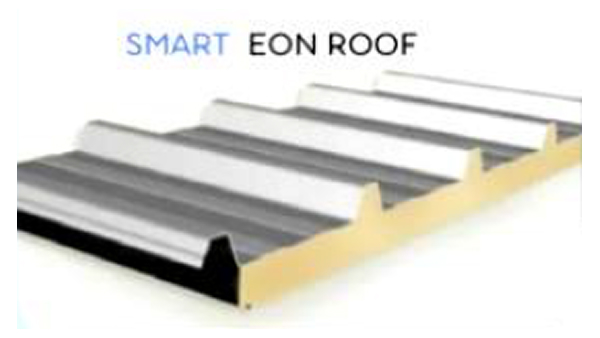

Smart Eon Roof
New Tech of Roofing joint with PIR Insulation

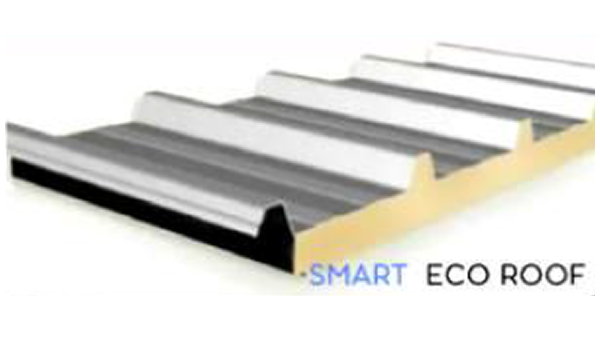

Smart Eco Roof
New Tech of Roofing joint with PIR Insulation

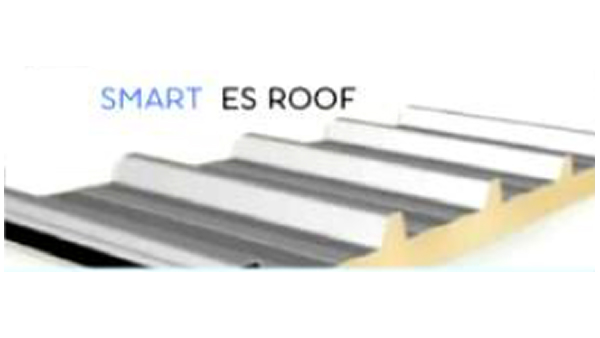

Smart Es Roof
New Tech of Roofing joint with PIR Insulation

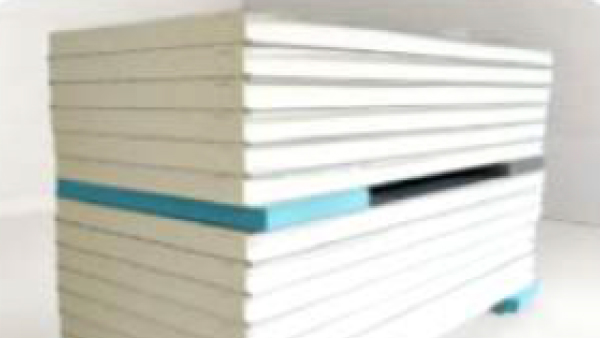

Smart PIR Sandwich Panel
PIR Sandwich Panel with B1 Class fire retardant, high compressive strength +/- 30 ton/m², and low thermal conductivity 0.019 W/mK

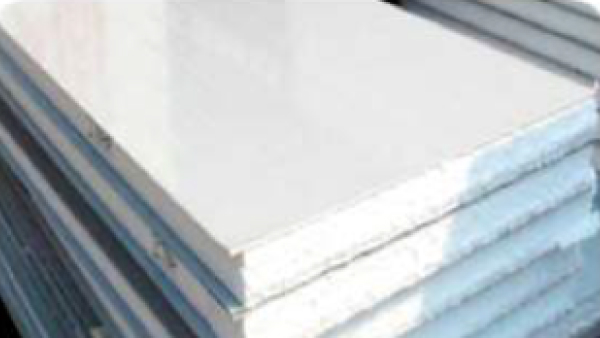

Smart EPS Sandwich Panel
PIR Sandwich Panel with B1 Class fire retardant, high compressive strength +/- 30 ton/m², and low thermal conductivity 0.019 W/mK

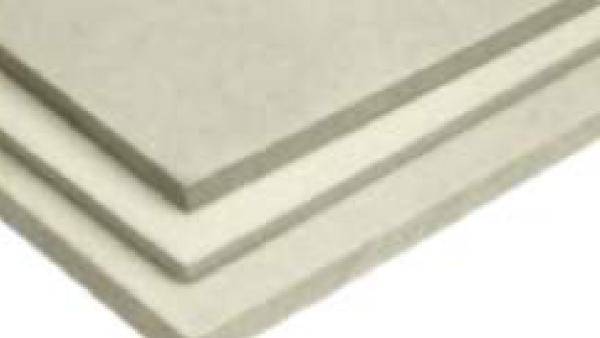

Smart Board
PIR/ PUR Foam Board with custom skin, thickness and density

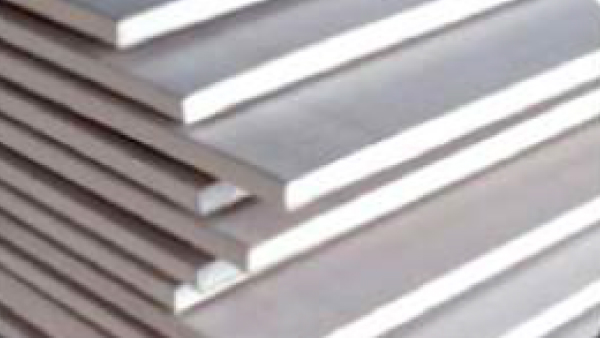

Smart Board Alumunium
PIR/ PUR Foam Board with custom skin, thickness and density

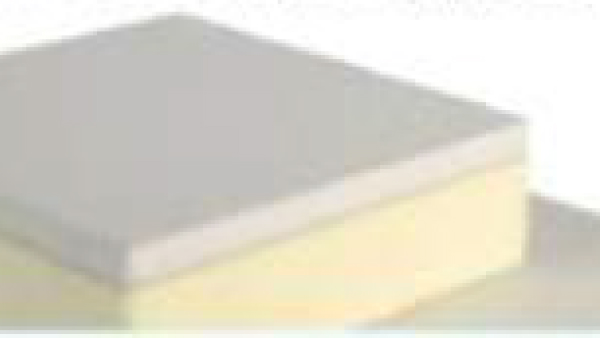

Smart Board Gypsum
PIR/ PUR Foam Board with custom skin, thickness and density
Smart Duct
PIR Pre - Insulated Aluminium Panel, with Class O Fire Retardant for HVAC Ducting

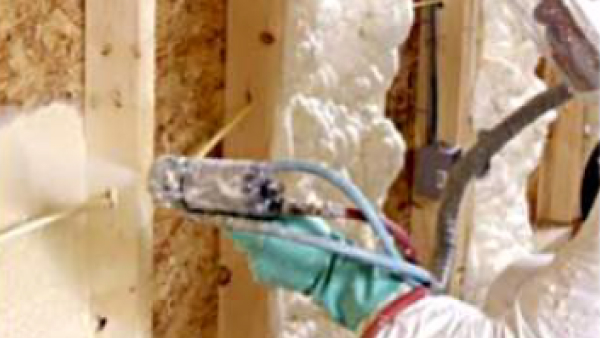

Smart Spray
PU/ PIR Spray Insulation with custom thickness and density

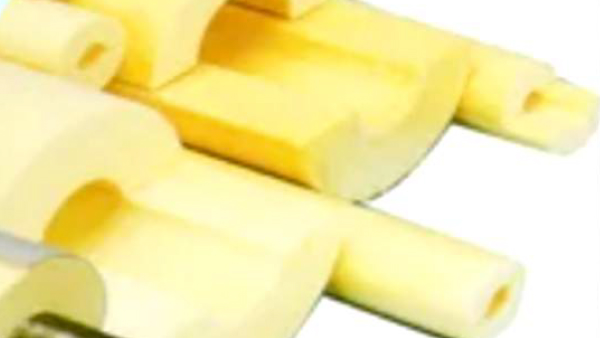

Smart Pipe Insulant
PU/ PIR Pipe Insulation with custom thickness and density
Projects
- Rumah Sakit Covid Pulo Galang Batam
- Rumah Sakit Covid Panti Rahayu Purwodadi
- Rumah Sakit Covid UGM Yogyakarta
- Rumah Sakit Covid Adam Malik Medan
- Rumah Sakit Covid Trisakti Jakarta
- Project LRT
- Project MRT
- Gudang Pertamina Banjarmasin
- Cold Storage Unilever
- Cold Storage Campina Ice Cream
- Pom Bensin Shell
- Halte Bus Telkomsel
- Bandara Internasional Soekarno Hatta
- Bandara Adi Sucipto Yogyakarta
- Gudang Medic PT Kimia Farma Bandung
- GBI Istana Plaza Bandung
- Pabrik Obat PT Rodamas Medan
- Etc.
